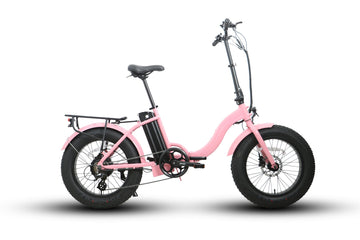

EUNORAU E-FAT-STEP

EUNORAU electric bikes make going further, exploring more, and being free possible.

Take A Closer Look

This is what makes the EUNORAU E-FAT-STEP the best in its class.

500W REAR-MOUNTED MOTOR

A fat hub motor in the Rear wheel can crank out a continuous 500 watts of power with the ability to ratchet things up to over 750 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque.

12.5AH HIGH CAPACITY BATTERY

Running on a 48-volt system, as well as a 12.5Ah battery, this e-bike can reach up to an estimated max range of 40 miles (64 km) with pedal assist. The locking removable battery located beneath the bike’s saddle, not only keeps the centre of gravity low and overall weight well-balanced, but also makes it convenient and easy to charge.

INTEGRATED HEADLIGHT

Every time the brakes are applied, the brake light will be activated through the main battery pack.

INTEGRATED BRAKE TAILLIGHT

Every time the brakes are applied, the brake light will be activated through the main battery pack.

160 MM DISC BRAKE

These brakes are sensitive, but provide efficient and ample force when braking. When riding in harsh conditions; they are swift, and can be relied upon to ensure your safety (*Upgraded Version: 160 MM Hydraulic Disc Brake).

CHAIN WHEEL WITH COVER

The double-sided aluminum bash guard on this model helps protect the chain ring teeth from strikes, while also keeping the chain locked firmly into place. There is also a built in chain guide to reduce the chances of derailing.

FOLDABLE FRAME

Having a folding feature on the main frame tube and telescoping stem, the bike is able to fold, and be stored away.

COMPACT YET CLEAR DISPLAY

Compact yet clear backlight display makes your eyes get all information immediately, like battery capacity, time, pedal assist level, speed, range. Simple is always great.

COMFORTABLE SADDLE

Every fancy-memory of riding should have one comfortable saddle, Must-have makes your long-trip riding with less fatigue, more enjoyment.

Dimensions

Review Video

Note: the below video is for the E-FAT-MN which has similar specs to the E-FAT-STEP.

SPECIFICATIONS

• Battery: 48V/12.5Ah
• Range: 40-50 Miles
• Motor: 48V/500W Brushless DC hub motor HIGH TORQUE installed in rear wheel
• Total Payload Capacity: 330 lbs
• Recommended Rider Heights: 5'6" ~ 6'1"
• Maximum Speed: 20MPH
• Charger: US standard 2.0 A smart charger
• Controller: 48V / 20A
• Display: K-LCD5 Panel
• Weight: 63.6 lbs
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 98 L x 48 W x 72 H

Components

• Tires: Tires 20 x 4.0
• Brake lever: Promax Mechanic Disc Lever with motor cutoff switch
• Rear Light: Integrated Brake Tallight
• Freewheel: Shimano 7 speed gear shift system
• Brake: Promax 160 MM Disc Brake (or Hydraulic Disc Brakes)
• Throttle: Thumb Throttle
• Crank: 170mm forged Aluminum Alloy
• Gearing: 7 Speed 1x7 Shimano Altus Rear Derailleur
• Frame Material: Aluminum Alloy
• Stem: Telescoping Height, 260mm Base with 140mm Extension, 10mm Spacer, 25.4mm Clamp Diameter
• Pedal: High-Quality Folding Nylon Pedals
• Front Light: LED Light
• Saddle: Comfortable Saddle
• Tool: Included
• Sprocket: 48T chain-wheel crank
• Rims: 20inch Black Alloy
